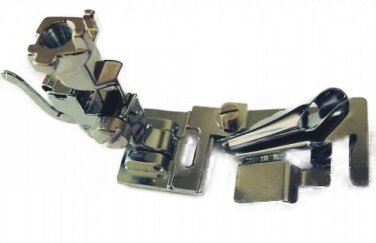

1/4" Bias Binder Foot.
Not Bernina trade mark
To bind edges with 1/4" (6mm) Bias Binding, cut a 1" (24 mm) wide bias strip of light weight fabric, or use packaged narrow double fold Bias Binding. Straight stitch, length 2.5, or zigzag or decorative stitch at desired length.
* Cut the end of the bias tape to a point. Insert the bias tape from the outside of the funnel guide, into the slot that matches its width, (the second slot is perfect for packaged bindings), and pull it down under the foot.
* Place the edge to be bound into the groove on the left side of the funnel guide.
* Adjust needle position as needed or to adjust the position of the binder funnel/guide, loosen the screw on the top of the foot and position the funnel guide as needed.
* Use the center scroll to feed unfolded bias tape (max. 1" / 24mm wide)
* Compatible with all Bernina Old style machines
500 Series models.....
530, 530-2, 531, 532, 532-2, 534, 540, 540-2, 542-2
600 Series models.....
600(not deco), 610, 614, 640-2, 642-2, 644
700 Series models.....
700, 707, 708, 709, 717, 718, 719, 730, 731, 732, 741, 742, 744
800 Series models.....
800, 801, 801s, 802, 802s, 803, 803s, 807, 808, 809, 810, 811, 811s, 817, 818, 819, 830, 830e, 830H, 831, 832, 840, 841, 842, 850
900 Series models.....
900, 900E, 910, 910N, 930, 931, 932, 940, 950
1000 Series models.....
1000, 1001, 1004, 1005, 1006, 1008, 1010, 1011, 1020, 1030, 1031, 1080, 1090
1100 Series models.....
1120, 1130
1200 Series models.....
1230, 1260
Also fits these model.....
1530 &1630
